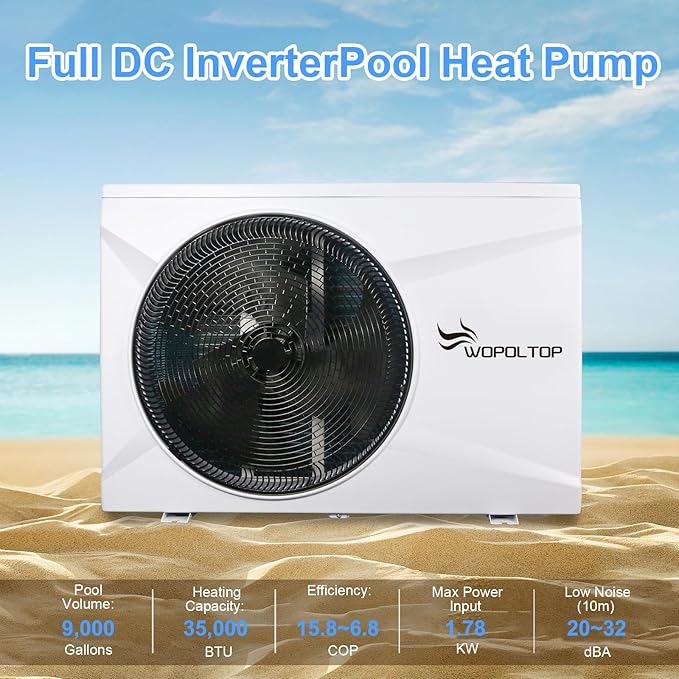

FULL DC INVERTER 35,000BTU SWIMMING POOL HEAT PUMP 10KW FOR UP TO 9,000 GALLONS POOL

Specifications:

• Power Supply: 220~240V/1/50
• Max Power Input: 1.78 kW
• Max Current: 8.3 A
• Water Flow Volume: 924 Gal/h
• Working Temp. Range: 5~109.4°F
• Noise level 1m: 40~52 dB(A)
• Noise level 10m: 20~32 dB(A)
• Refrigerant: R32
• Heat Exchanger: Titanium
• Air Flow Direction: Horizontal
• Automatic Defrosting: by 4 way valves
• Casing Material: ABS plastics
• Water Proof Level: IPX4
• Net Weight: 43kg
• Gross Weight: 54kg

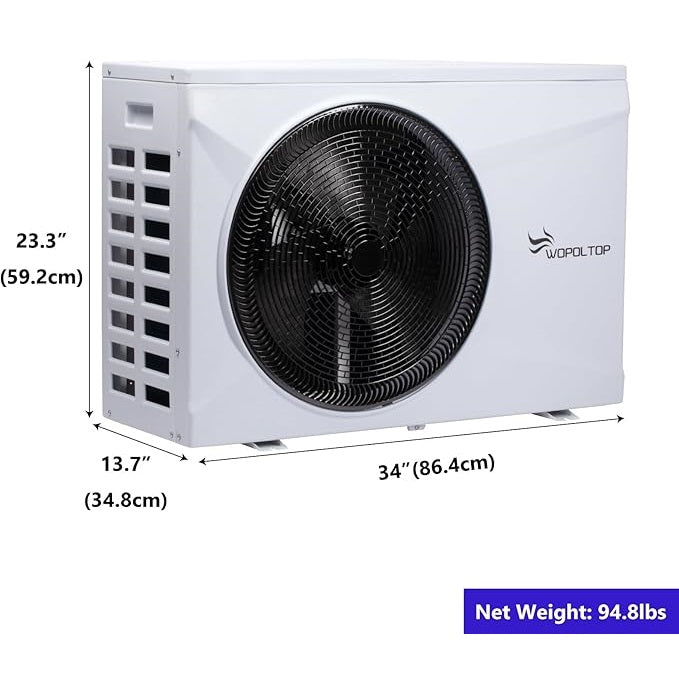

• Net Dimensions: 34 x 13.7 x 23.3inch
• Package Dimensions: 36.6 x 15.7 x 25.2inch

Details:

• Full Variable Frequency Design: The WOPOLTOP 10KW pool heat pump is suitable for both above-ground and underground pools with a recommended maximum pool capacity of 9,000 gallons. Compressors and fans use frequency conversion technology to minimize power consumption and eliminate the need for frequent on/off cycles, thereby saving energy.

(The specific applicable swimming pool capacity depends on the local ambient temperature, the water outlet temperature you set, and the swimming pool insulation measures when using the product. If you are not sure how much power heat pump you need, please contact us.)

• Advanced Compressors: Equipped with high quality compressors, 35,000 BTU heat pumps deliver superior heating power in different operating conditions with COP up to 6.8, ensuring best-in-class performance and stability. Full DC variable frequency fan motors and compressors adjust the heating capacity within the maximum range for the most efficient operation.
• WiFi Control Heating and Cooling: The heat pump has both heating and cooling functions, and the pool heating system can be completely controlled remotely using the wireless WiFi control function. Seamlessly adjust Settings and monitor temperature levels from your smartphone or tablet for endless convenience and peace of mind.
• Noise and Vibration Reduction Design: The high quality compressor adopts anti-vibration technology. The package consists of four sound pads and is supported by sound insulation materials. Additional sound insulation materials are used at all connection points to effectively reduce vibration and damp noise. Maintain a noise level of about 40 to 52 decibels within a distance of about 1 meter.
• High-quality ABS Material: The shell of the WOPOLTOP heat pump is made of high-quality ABS material, ensuring high corrosion resistance, rust resistance, durability and light weight, and can well withstand outdoor conditions such as sunlight and rain (need to pay attention to prevent lightning strikes), effectively prolongating the service life of the equipment.


Temperature Range:

Cooling mode setting range: 8-28 ° C (46.4-82.4 ° F)

Heating mode setting range: 8-40 ° C (46.4-104 ° F)

WiFi Control for Heating and Cooling

The heat pump has a dual function of heating and cooling, and the wireless WiFi control function allows for remote and complete control of the heating system of the swimming pool. Seamless adjustment of settings and monitoring of temperature levels through smartphones or tablets brings you endless convenience and peace of mind.
