DOEL MINI SWIMMING POOL HEAT PUMP FOR ABOVE-GROUND POOLS

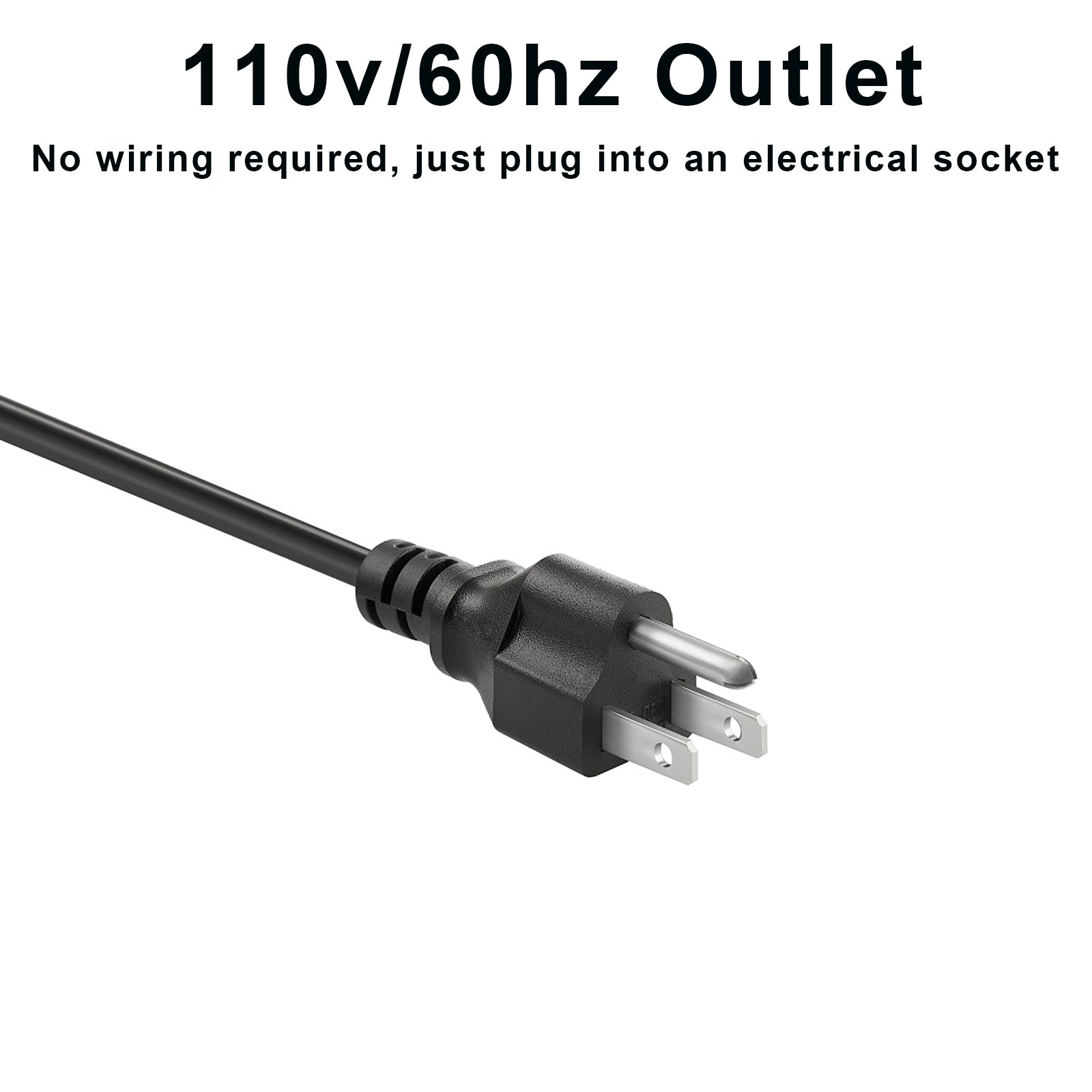

• Voltage: 110V/60Hz/1N
• Heating performance: 120000 BTU
• Circulating Heating Water Flow: 396gph
• Heating capacity: 3.45 kW

• Suitable for pools: Above Ground
• Above Ground Pool Size: 15 m³(4000 gallons)
• Noise: 55dB(A)
• Air Temperature Requirement: 53°F~109°F

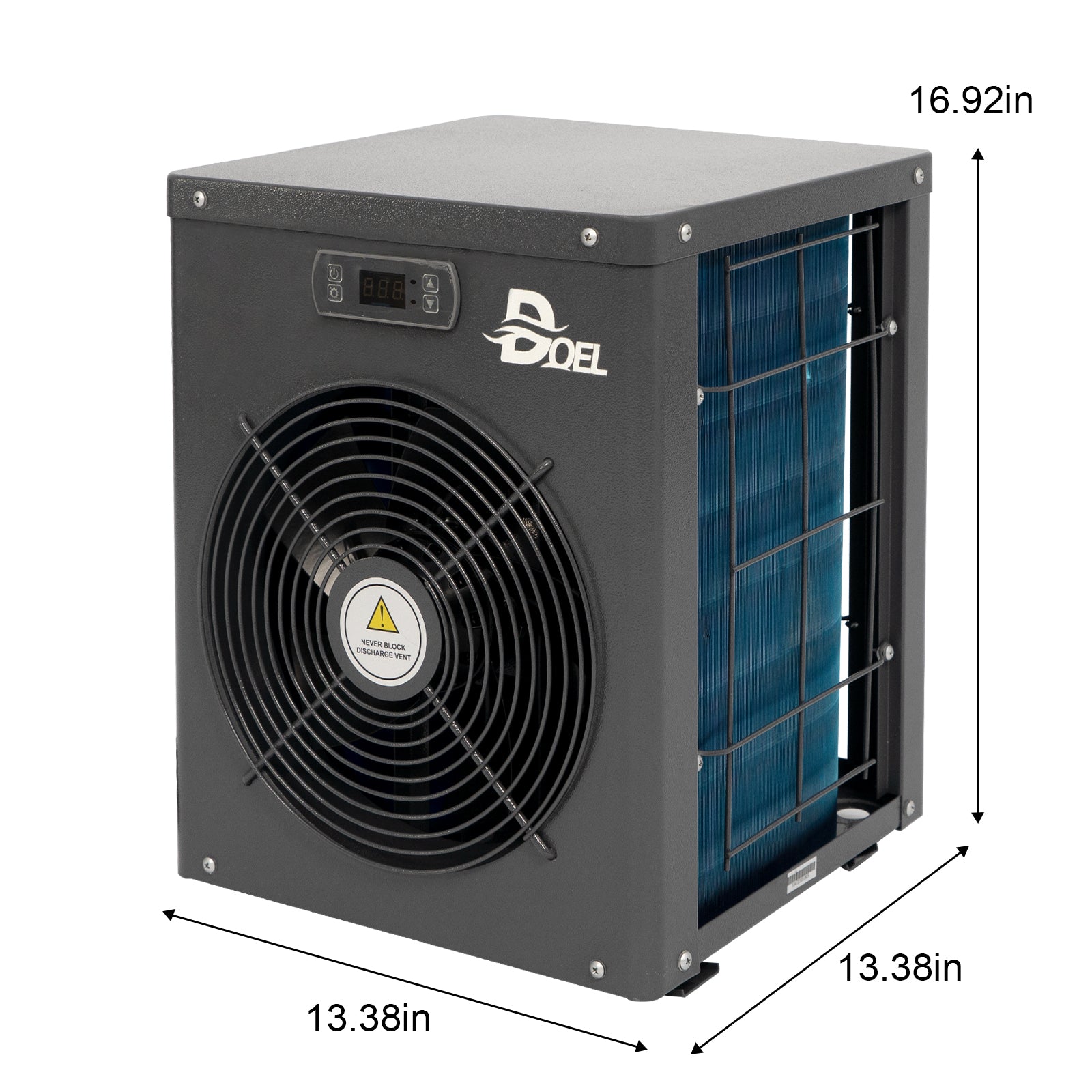

• Net Dimension: 16.5"x15"x16.9"
• Weight: 52 lb

Performance at Air 80°F, Water Heated to 80°F, Relative Humidity 80%

• Heating Capacity：3.45 kW(11800 BTU)
• Power consumption：0.65 kW(2218 BTU)
• C.O.P.：5.7 W/W

Performance at Air 59°F, Water Heated to 78.8°F, Relative Humidity 70%

• Heating capacity：2.49 kW(8496 BTU)
• Power consumption：0.64 kW(2184 BTU)
• C.O.P.：3.9 W/W

Feature:

• Efficient and Energy-saving: Our 3.45kW mini pool heat pump utilizes advanced heat pump technology to efficiently convert the heat from the surrounding air into pool water heating, resulting in significant energy savings and reduced operating costs.
• Compact and Durable Design: Crafted with robust sheet metal material, our heat pump boasts a sturdy construction that ensures long-lasting performance. The high-quality copper pipes facilitate rapid heat exchange, enabling quick and reliable heating of your pool water.
• Environmentally Friendly: With the use of R410A refrigerant, our air-source pool heat pump operates in an eco-friendly manner, minimizing environmental impact and carbon emissions. It provides a sustainable heating solution for your pool while preserving the planet.

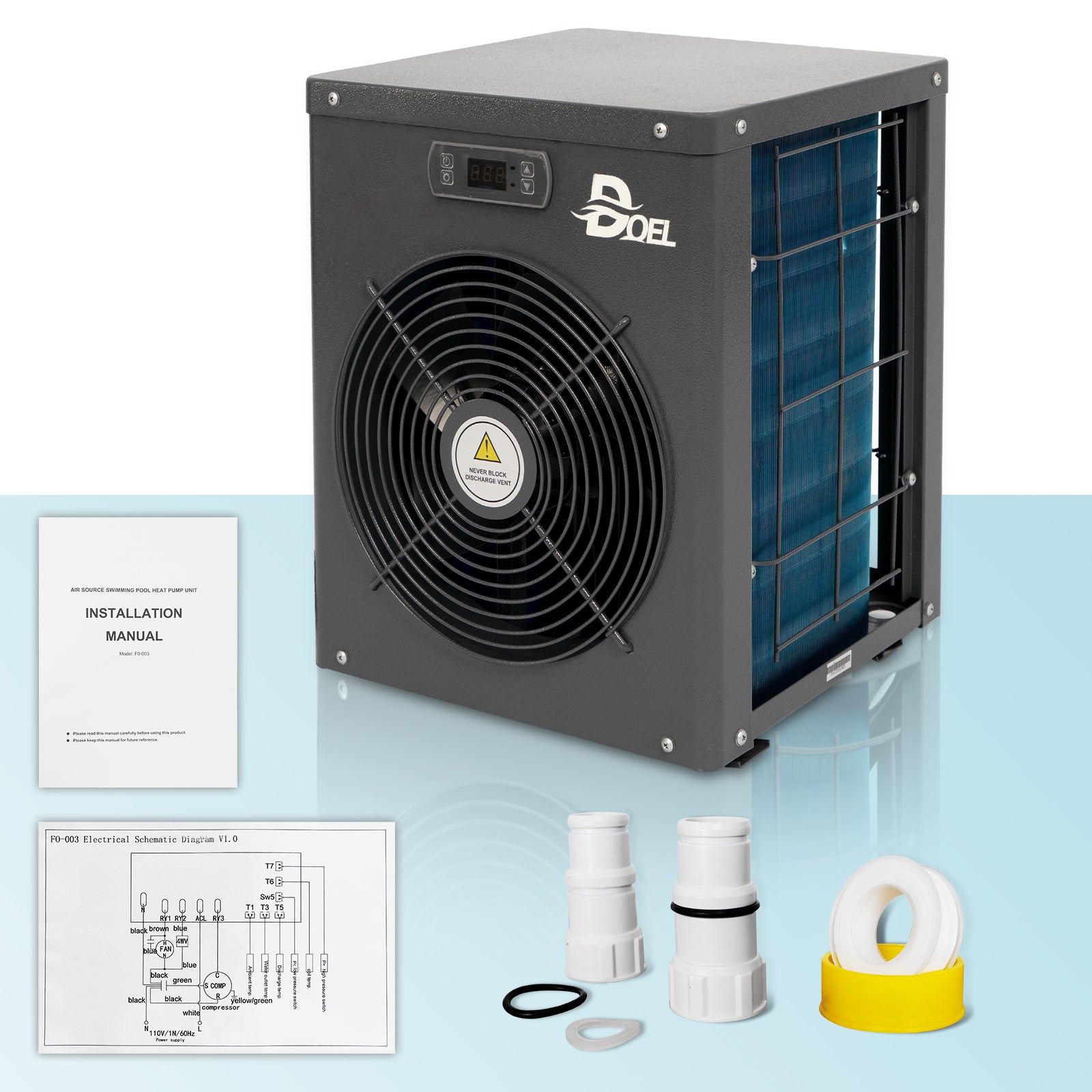

• Easy Installation and Versatility: Our mini pool heat pump is designed for hassle-free installation. We provide two pipe connectors, along with a comprehensive instruction manual, making the setup process convenient and straightforward. It is suitable for above-ground inflatable pools and spas with a capacity of up to 4000 gallons.
• Superior Customer Service and Warranty: We take pride in offering excellent customer service, including pre-sales consultation, installation guidance, technical support, and after-sales assistance. We provide a one-year warranty to ensure your peace of mind and a satisfying experience with our product.
• If the units you received is defective, please feel free to report it to us immediately, we will help you solve the problems and improve it according your feedback in time. You'll also have the chance to get a new one for free.

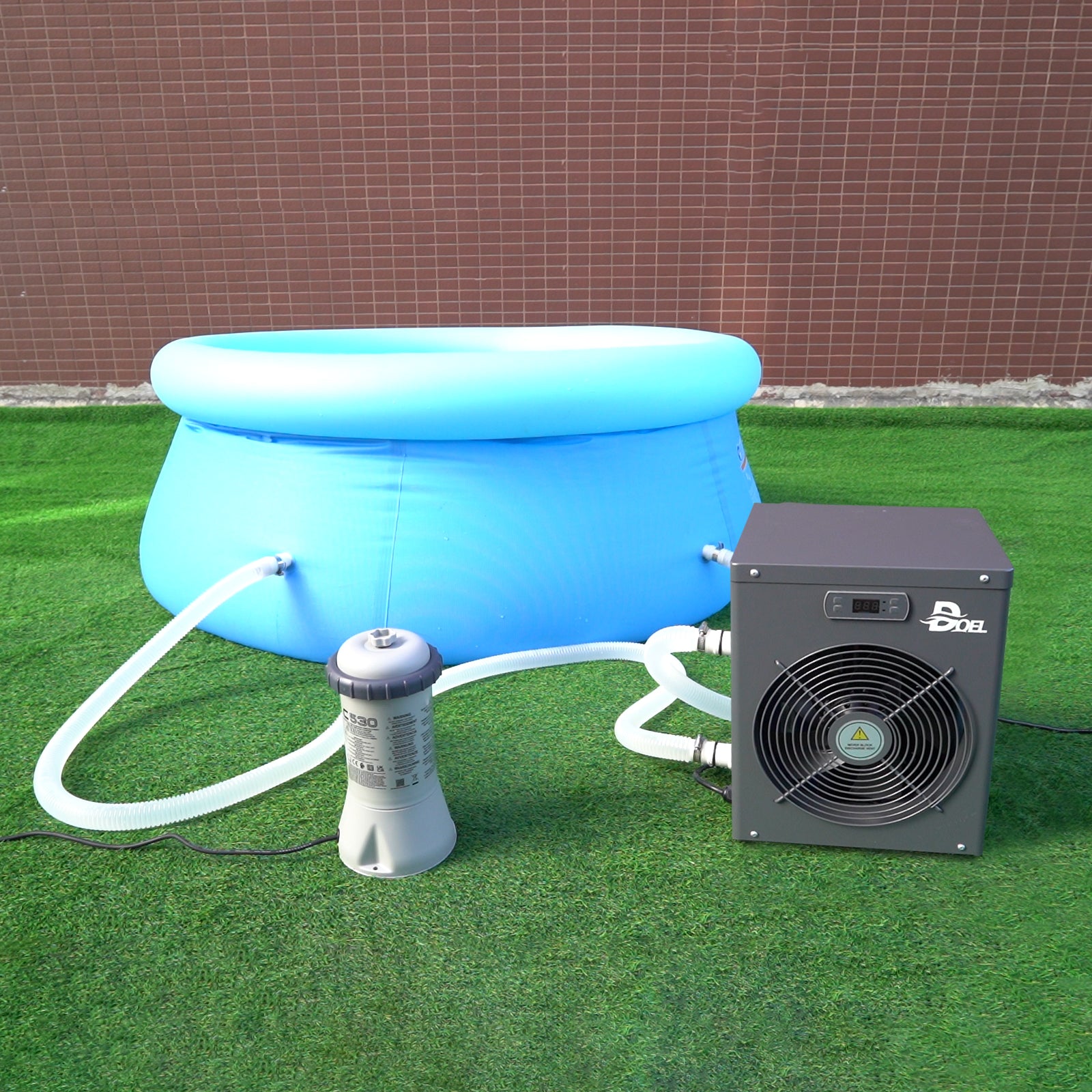

The new mini pool heat pump for small water volumes is ideal for small above ground pools. Output up to 12000 BTU, Can heat above ground pools from 15 m³ (4000 gallons) and can raise water temperature quickly and efficiently.

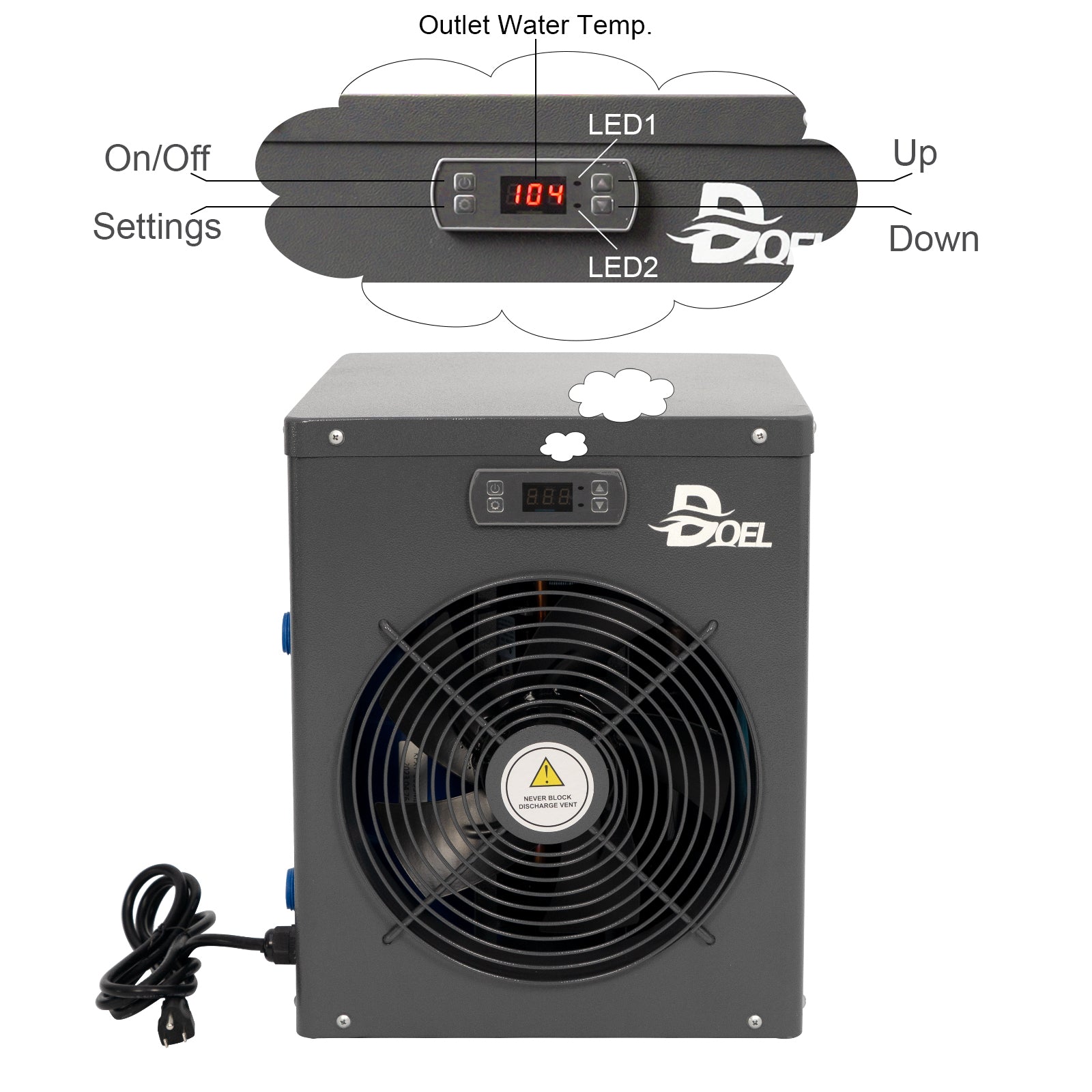

Easy-to-Use Intelligent Control Panel

Our pool heat pump features a user-friendly control panel that allows for effortless operation. With just a 3-second long press, the unit powers on, and adjusting the desired temperature is as simple as pressing the up and down keys.

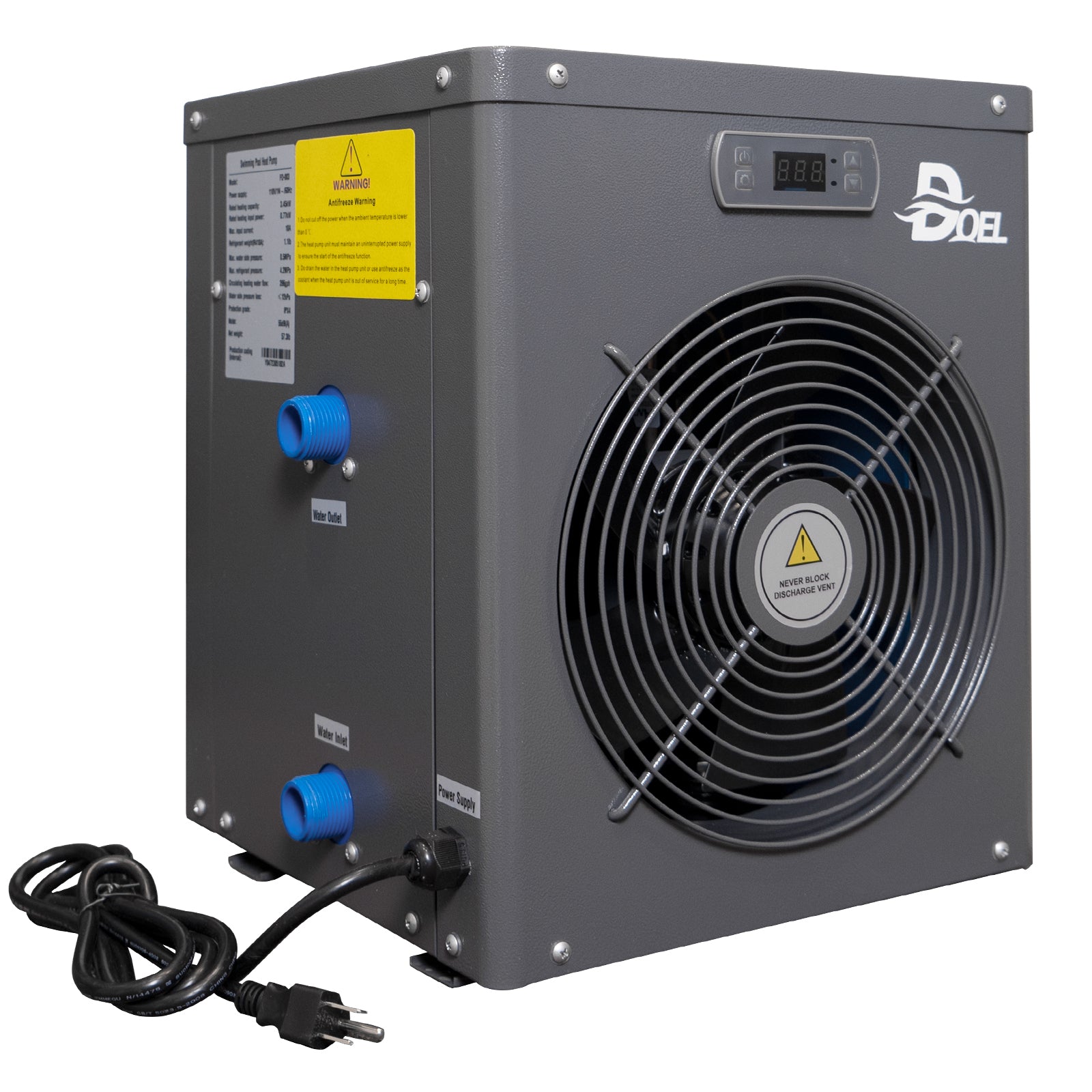

Convenient Water Inlet Options

We provide two water pipe adapters with outer diameters ranging from 32mm to 38mm. This allows you to use your own water pipes, connecting them to the pump and pool effortlessly. Enjoy the convenience and speed of setup with our versatile adapter options.

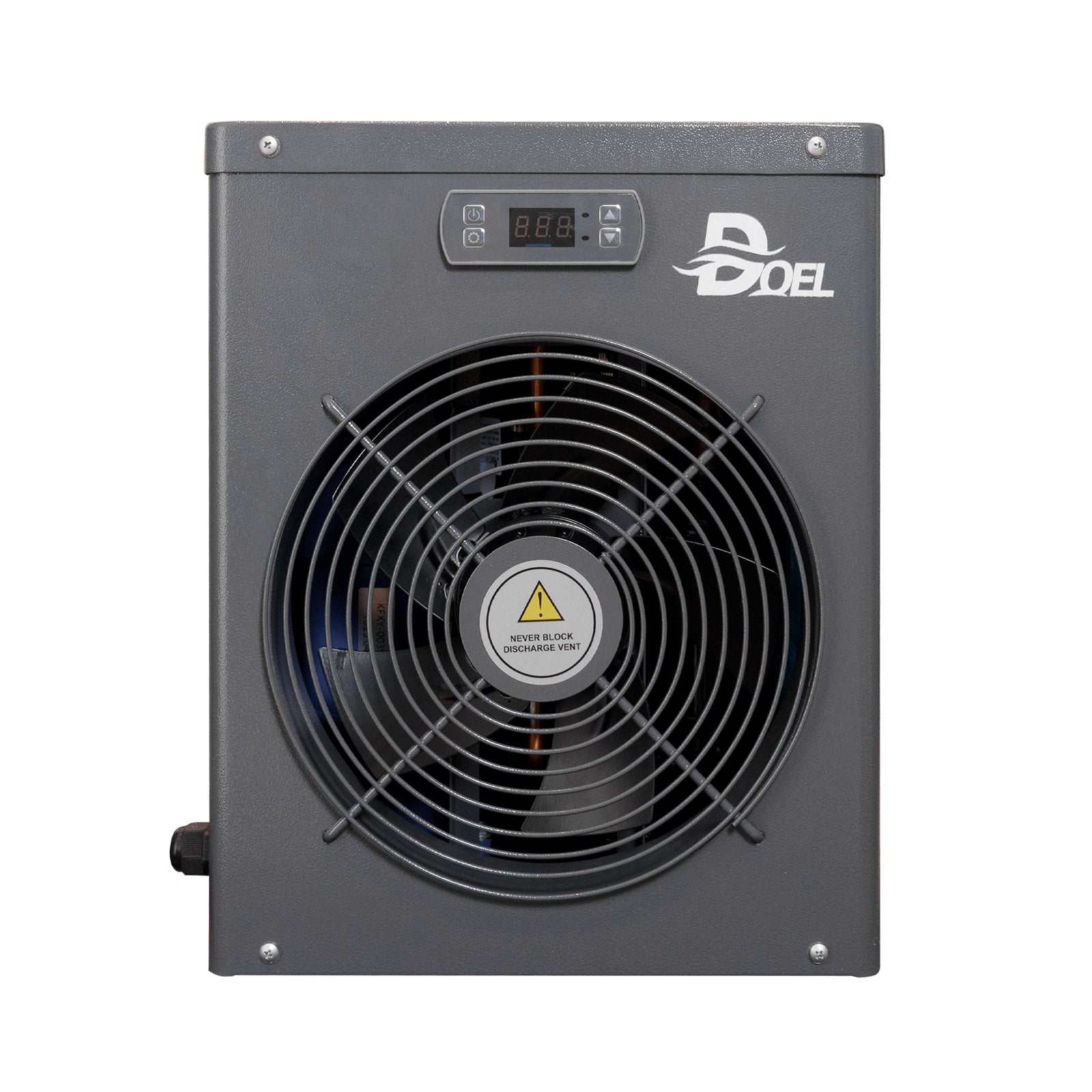

Integrated Metal Fan for Optimal Performance

Our heat pump is equipped with a high-quality metal fan that operates at a noise level of only 55 decibels. This fan offers several remarkable features, including high airflow, robust durability, low noise emission, and excellent heat dissipation capabilities. It enables the heat pump to rapidly cool down while minimizing frost build-up issues. Experience efficient cooling and reduced noise with our state-of-the-art integrated metal fan, ensuring optimal performance for your pool.

Flat tube titanium gun heat exchanger

This is a new type of titanium tube heat exchanger. Compared to threaded tubes, the flat tube heat exchanger can effectively increase the heat transfer efficiency by approximately 30% and is smaller in size.
