DOEL 71,000 BTU Inverter Pool Heat Pump 21kW | Up to 20,000 Gallons
DOEL 71,000 BTU Inverter Pool Heat Pump 21kW | Up to 20,000 Gallons
DOEL
Couldn't load pickup availability

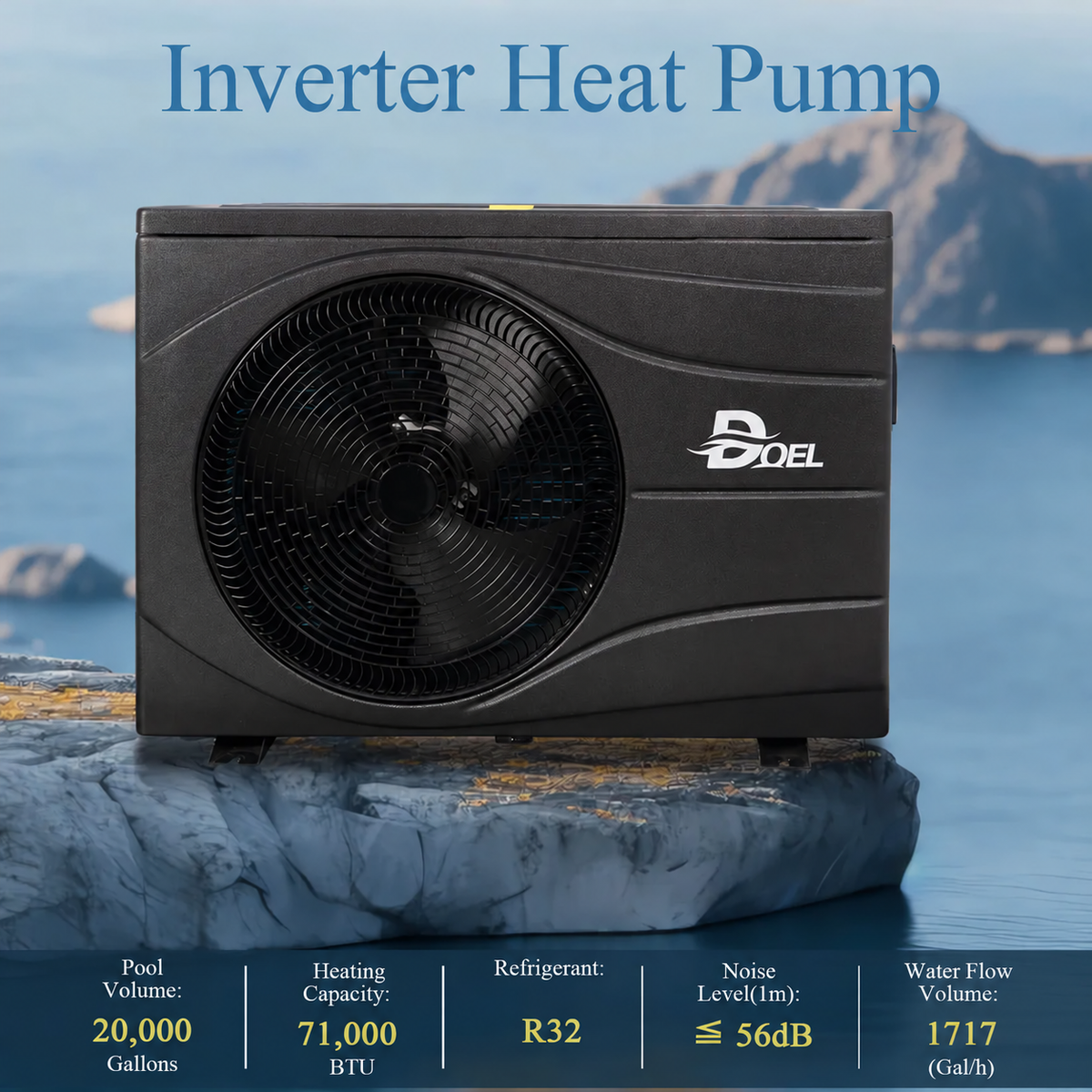

DOEL 21kW Inverter Pool Heat Pump
Heating and cooling for above-ground and in-ground pools up to 20,000 US gallons. Capacity selection depends on local climate, pool insulation, cover use and target water temperature.
Product specifications
| Brand and SKU | DOEL / B21KW |
|---|---|
| Heating capacity and model class | 71,000 BTU / 21kW |
| Pool capacity | Up to 20,000 US gallons |
| Function | Heating and cooling |
| Power supply | 220–240V, single phase |
| Water connection | 1.5-inch PVC unions |
| Net weight | 127.9 lb (58 kg) |
| Gross packaged weight | 152.1 lb (69 kg) |
| Unit dimensions L × W × H | 36.4 × 14.3 × 25.3 in |
| Package dimensions L × W × H | 39.0 × 17.1 × 29.9 in |
| Refrigerant and heat exchanger | R32 / titanium |
Operation
Inverter compressor and fan control adjust output to pool demand. WiFi control supports temperature adjustment and heating or cooling mode selection. Performance and energy consumption vary with operating conditions.
Electrical installation
A power cable is not included. A qualified installer must select cable size, protective devices and the supply frequency according to the nameplate and installation manual supplied with the US unit. Do not use heating output in kW to size electrical wiring.
Included accessories
Pool heat pump, two 1.5-inch PVC unions, operating instructions, vibration pads and condensate drain accessories. Check the supplied packing list before installation.
Shipping and support
Order processing: 2–5 business days. Estimated transit: 3–7 business days. Free shipping within the contiguous United States, excluding Alaska, Hawaii and US territories or islands.
For selection or after-sales support, email servicepro@gbtops.com. Warranty terms follow the included after-sales card. See our Shipping & Delivery and Return & Refund policies.
Product Selection & Support
Product Selection & Support
Model selection
Check model-specific capacity, pool volume, operating mode, power supply and water connection in the product specifications. Heat-pump performance varies with air temperature, pool insulation, cover use and target water temperature.
Installation
Follow the nameplate and supplied manual. Pool heat pumps rated 10kW and above require professional electrical installation; a power cable is not included.
Customer support
Email servicepro@gbtops.com for selection, installation or after-sales assistance. We respond within one business day, Monday–Friday, China Standard Time. Include the model and order number when available.
Shipping & Returns
Shipping & Returns
Shipping
Order processing: 2–5 business days. Estimated transit: 3–7 business days. Free shipping within the contiguous United States; Alaska, Hawaii and US territories or islands are excluded.
Returns
Contact servicepro@gbtops.com within 14 days of delivery for return authorization. Restore original packaging and include accessories. Return freight is covered for verified product quality issues; customer-requested returns unrelated to product quality require customer-paid freight confirmed before return. See our Shipping & Delivery and Return & Refund pages for full terms.
