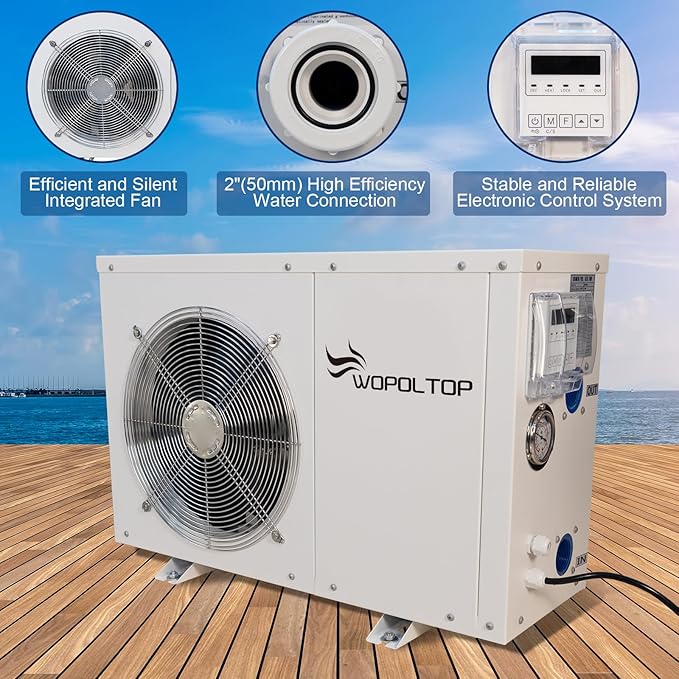

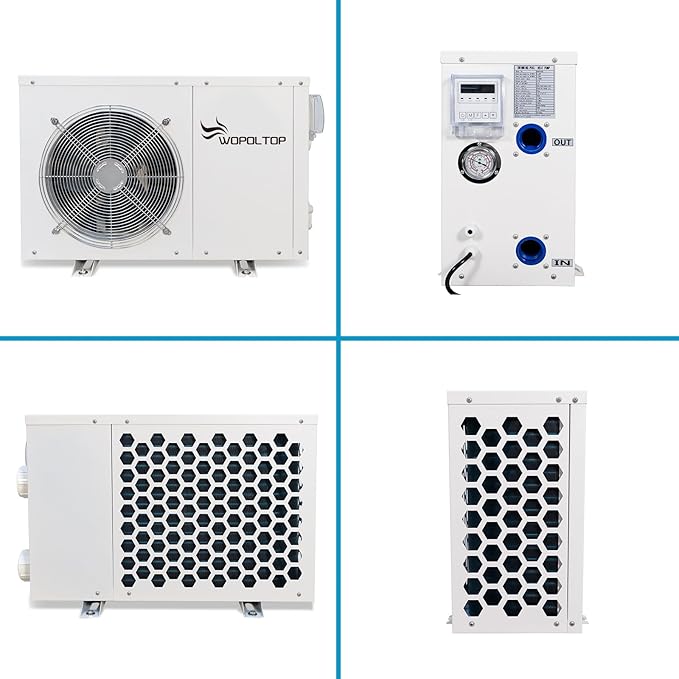

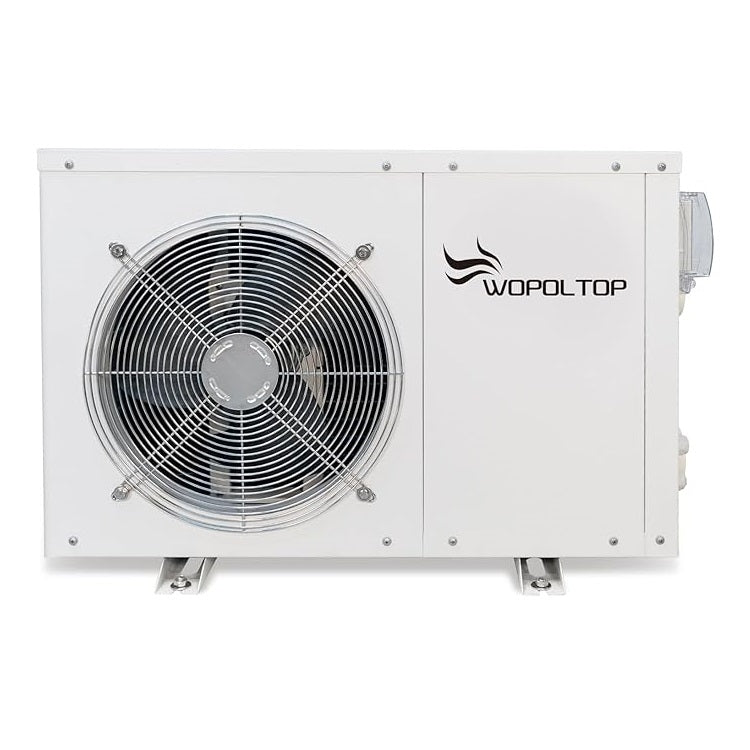

20000 BTU SWIMMING POOL HEAT PUMP

• Voltage: 110-120V 60Hz
• Rated Current: 4.8 A
• Max Current: 7 A
• Heating performance: 20000 BTU
• Advised pool volume (covered): 10-16m³
• Advised water flow: 600~850gal/h
• Water Pressure Drop: 12kPa
• Compressor: Rotary type with R410Arefrigerant, GMCC or the similar class brand
• Water Connector: 1-1/2" Union * 2

• Suitable for pools: Above Ground & In-Ground
• Suggested Pool Capacity: 6000 Gallons
• Noise level (10m): 42dBA
• Noise level (1m): 49dBA
• Net Dimension: 29.9"x11.8"x20"
• Weight: 84 lb

Details:

• High Efficiency: The WOPOLTOP Pool heat pump is equipped with a high-power compressor with a maximum output of 20000 BTU/ hour. Pure titanium heat exchangers are resistant to corrosion of pool water and can therefore be used in saltwater pools.
• Intelligent System: Allowing fast and easy hookup without professional installation. With innovative flat-tube titanium heat exchanger, the heat exchanging efficiency is 30% higher than spiral tubes.
• Stable and Safe: This heat pump model is designed for 120V/60hz, easy to operate standard 3-pin, 120V plug, can be used for US electric, direct plug operation. Equipped with fuses, varistors and strong electromagnetic compatibility protection

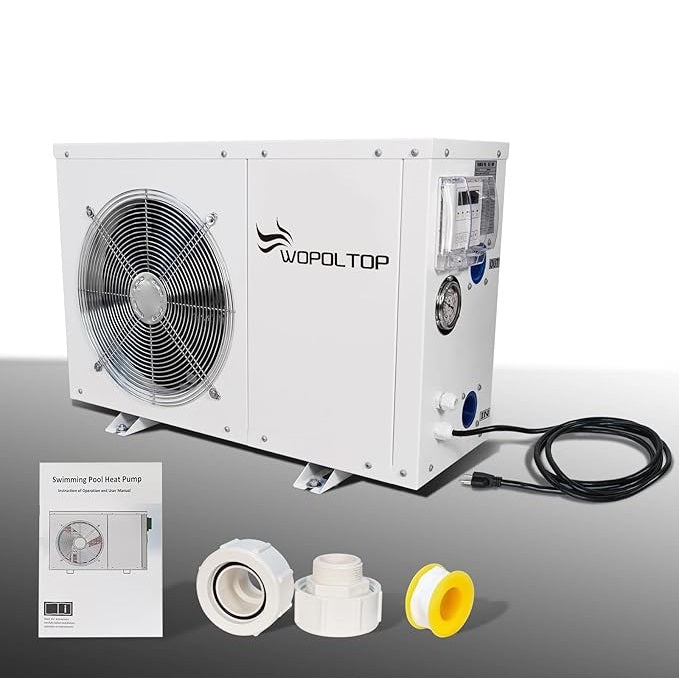

• Easy to Install: Equipped with 1-1/2" Union * 2 adapters for quick and easy connection, they can help you operate the heat pump simply and easily in less than 30 minutes. This product is recommended for use with 600-800 gallon flow pumps.
• Good Choice: 220-240 volts, 60 HZ for USA electricity. Built in 11.5 foot long power cable with standard USA plug,easy to install.

Feature:

With an output of 20,000 BTU, this pool heat pump is specially designed for above-ground pools (up to 6000 gallons) or in-ground pools (up to 4000 gallons), hot tubs, spas, etc. The operation only requires very limited electric input, hence its high efficiency and heat conversion rate can reach a score of COP 5.0.

Air 78.8℉, Humidity 80%, Water Heated to 78.8℉

• Heating Capacity：5.56 kW
• Power consumption：1.09 kW
• C.O.P.：5.0 W/W

Air 59℉ Humidity 70%, Water Heated to 78.8℉

• Heating capacity：3.67 kW
• Power consumption：0.9 kW
• C.O.P.：4.1 W/W

Intelligent System

Temperature control system can keep the pool temperature at a consistent level. Easy to set up digital panels provide quick access to unit controls. Child locks and advanced protection systems make use of the pool more convenient.

Stable and Safe

Good Choice
