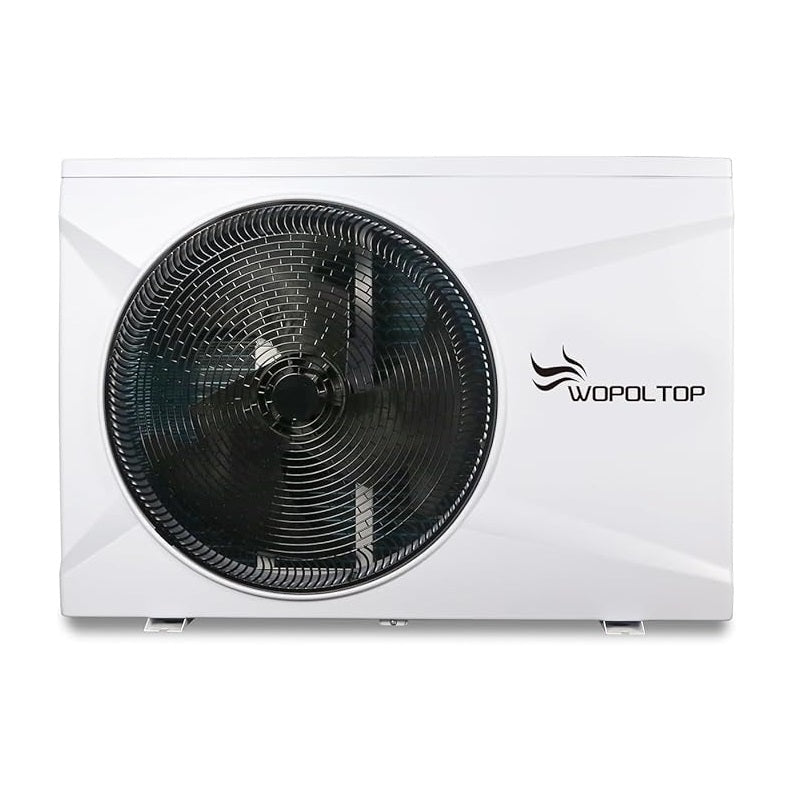

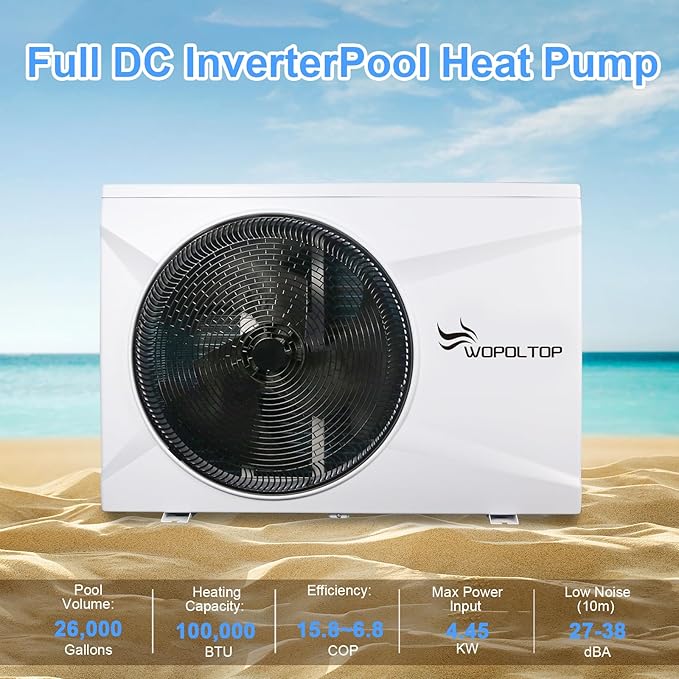

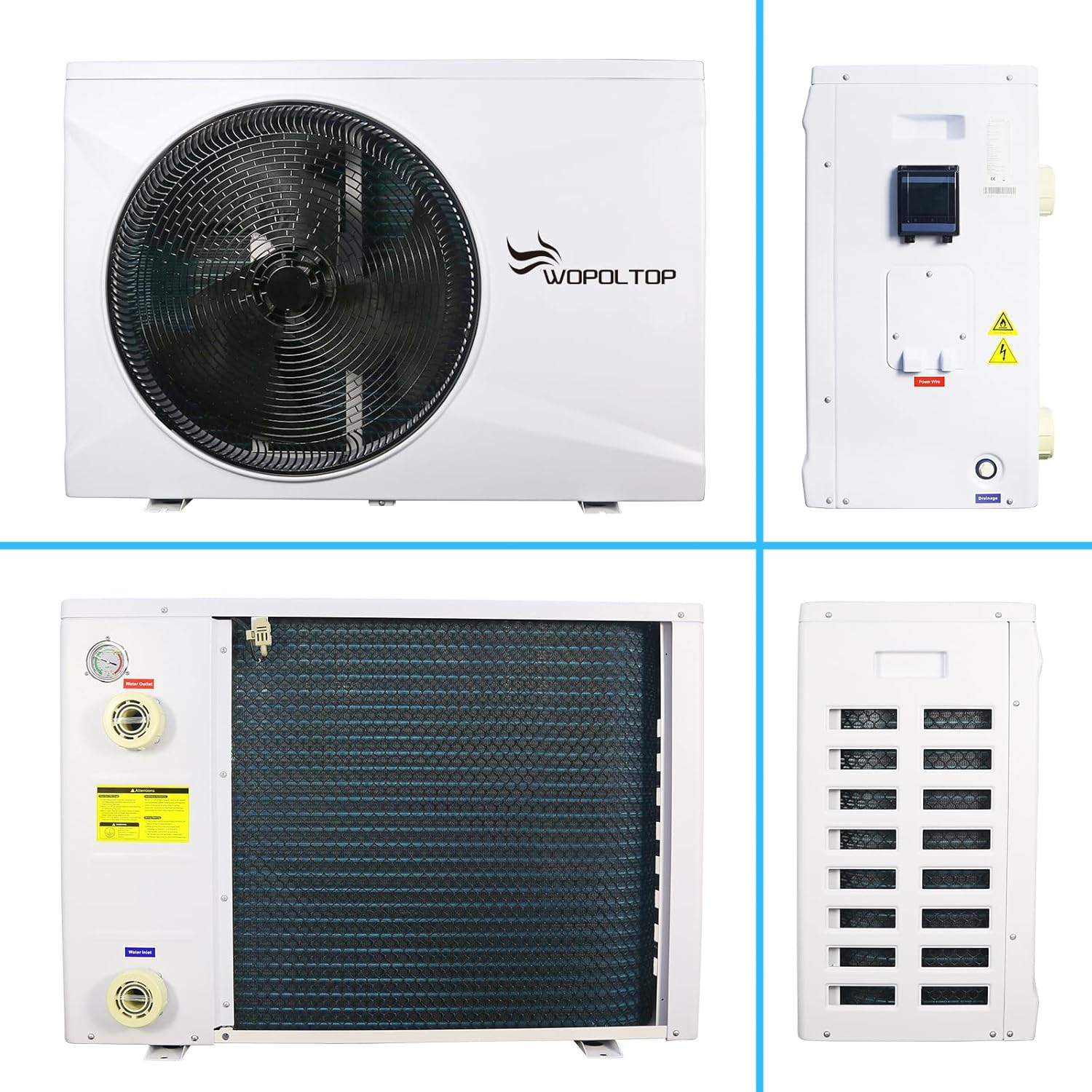

FULL DC INVERTER 100,000BTU SWIMMING POOL HEAT PUMP 30KW FOR UP TO 26,000 GALLONS POOL

Specifications:

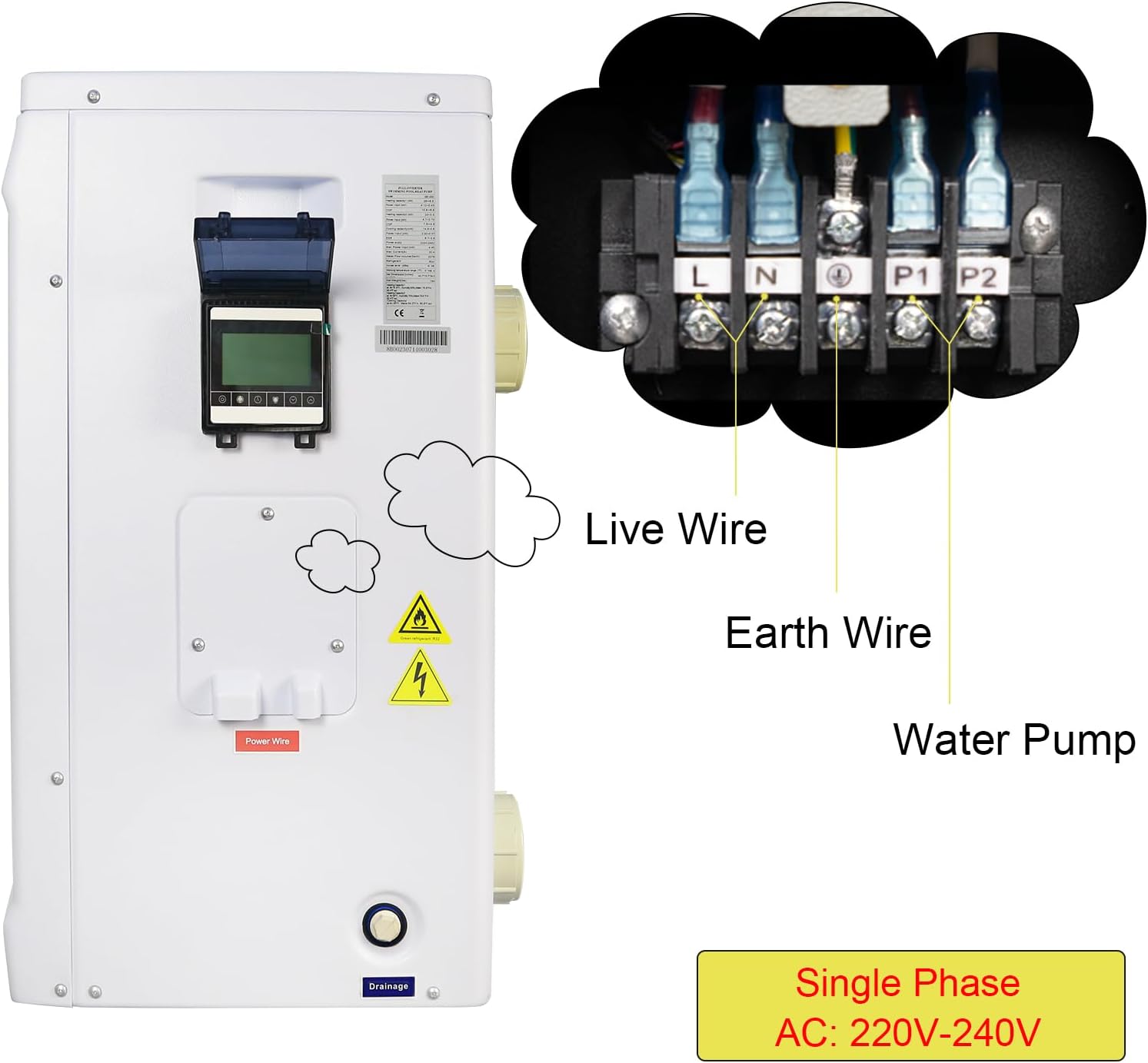

• Power Supply: 220~240V/1/50
• Max Power Input: 4.45 kW
• Max Current: 20.4 A
• Water Flow Volume: 2377 Gal/h
• Working Temp. Range: 5~109.4°F
• Noise level 1m: 47~58 dB(A)
• Noise level 10m: 27~38 dB(A)
• Refrigerant: R32
• Heat Exchanger: Titanium
• Air Flow Direction: Horizontal
• Automatic Defrosting: by 4 way valves
• Casing Material: ABS plastics
• Water Proof Level: IPX4
• Net Weight: 194lbs
• Gross Weight: 218lbs

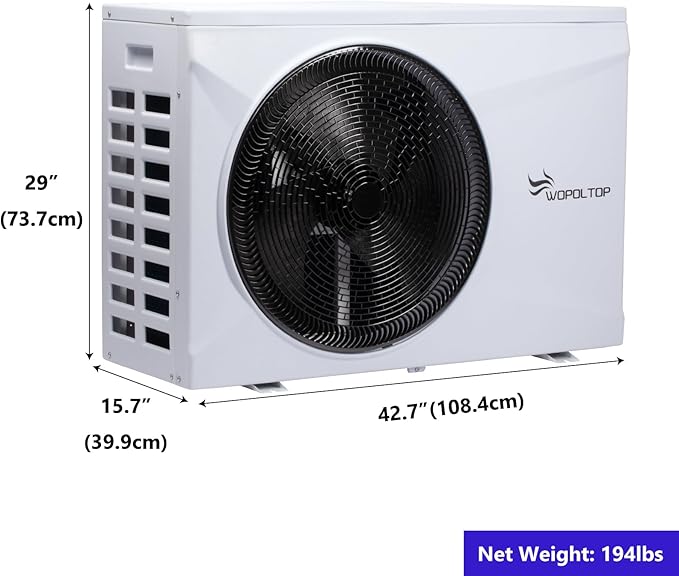

• Net Dimensions: 42.6 x 15.7 x 29inch
• Package Dimensions: 45.1 x 18.1 x 33.9inch

Details:

• Full Frequency Conversion Design: WOPOLTOP 30KW pool type heat pump is suitable for both above ground and underground water pools, with a recommended maximum pool capacity of 26000 gallons. The compressor and fan adopt frequency conversion technology to minimize power consumption and eliminate the need for frequent on/off cycles, thereby saving energy.

(The specific applicable swimming pool capacity depends on the local ambient temperature, the water outlet temperature you set, and the swimming pool insulation measures when using the product. If you are not sure how much power heat pump you need, please contact us.)

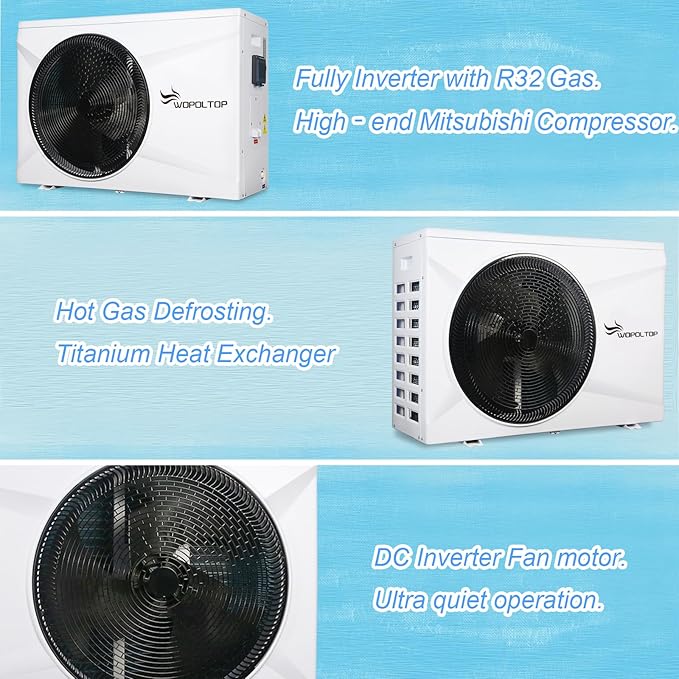

• Advanced Compressor: Equipped with high-quality compressors, the 100000 BTU heat pump can provide excellent heating power in different working conditions, with a COP of up to 6.8, ensuring first-class performance and stability. The fully DC variable frequency fan motor and compressor can adjust the heating capacity within the maximum range, achieving the most efficient operation.
• WiFi Control for Heating and Cooling: The heat pump has a dual function of heating and cooling, and the wireless WiFi control function allows for remote and complete control of the heating system of the swimming pool. Seamless adjustment of settings and monitoring of temperature levels through smartphones or tablets brings you endless convenience and peace of mind.

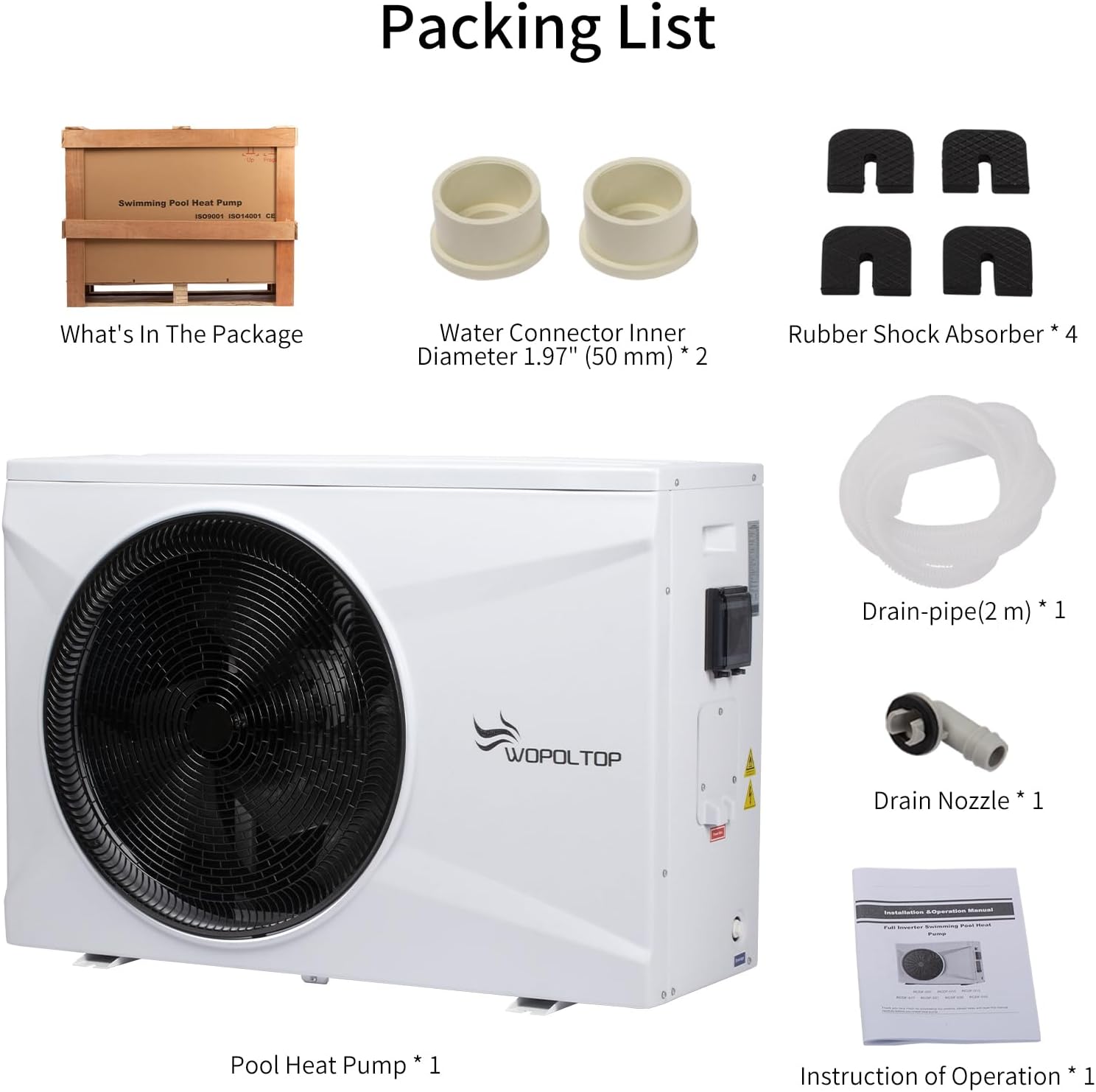

• Noise Reduction and Vibration Reduction Design: The high-quality compressor adopts anti vibration technology, and the set includes four sound insulation pads supported by sound insulation materials. All connection points are equipped with additional sound insulation materials, effectively reducing vibration and damping noise. Maintain a noise level of around 47~58 decibels within a distance of approximately 1 meter.
• High-quality ABS Material: The casing of the WOPOLTOP heat pump is made of high-quality ABS material, ensuring high corrosion resistance, rust resistance, durability, and lightweight. It can withstand outdoor conditions such as sunlight and rain well (attention should be paid to preventing lightning strikes), effectively extending the service life of the equipment.


Temperature Range:

Cooling mode setting range: 8-28 ° C (46.4-82.4 ° F)

Heating mode setting range: 8-40 ° C (46.4-104 ° F)

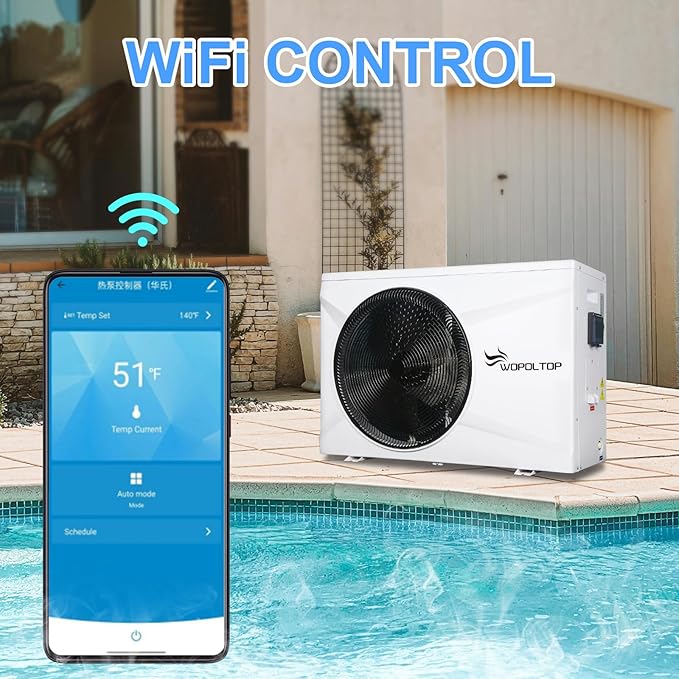

WiFi Control for Heating and Cooling

The heat pump has a dual function of heating and cooling, and the wireless WiFi control function allows for remote and complete control of the heating system of the swimming pool. Seamless adjustment of settings and monitoring of temperature levels through smartphones or tablets brings you endless convenience and peace of mind.
