Need help choosing? Contact product support →WOPOLTOP 58,000 BTU Full DC Inverter Pool Heat Pump
Heat or cool your above-ground or in-ground pool with a 58,000 BTU air-source heat pump. Recommended for pools up to 14,000 US gallons, subject to local climate, heat loss and your target water temperature.
Why choose this model
- Match the output to your pool. 58,000 BTU heating capacity for above-ground and in-ground pools up to 14,000 US gallons. Full DC inverter technology varies compressor and fan operation to reduce frequent starts and stops.

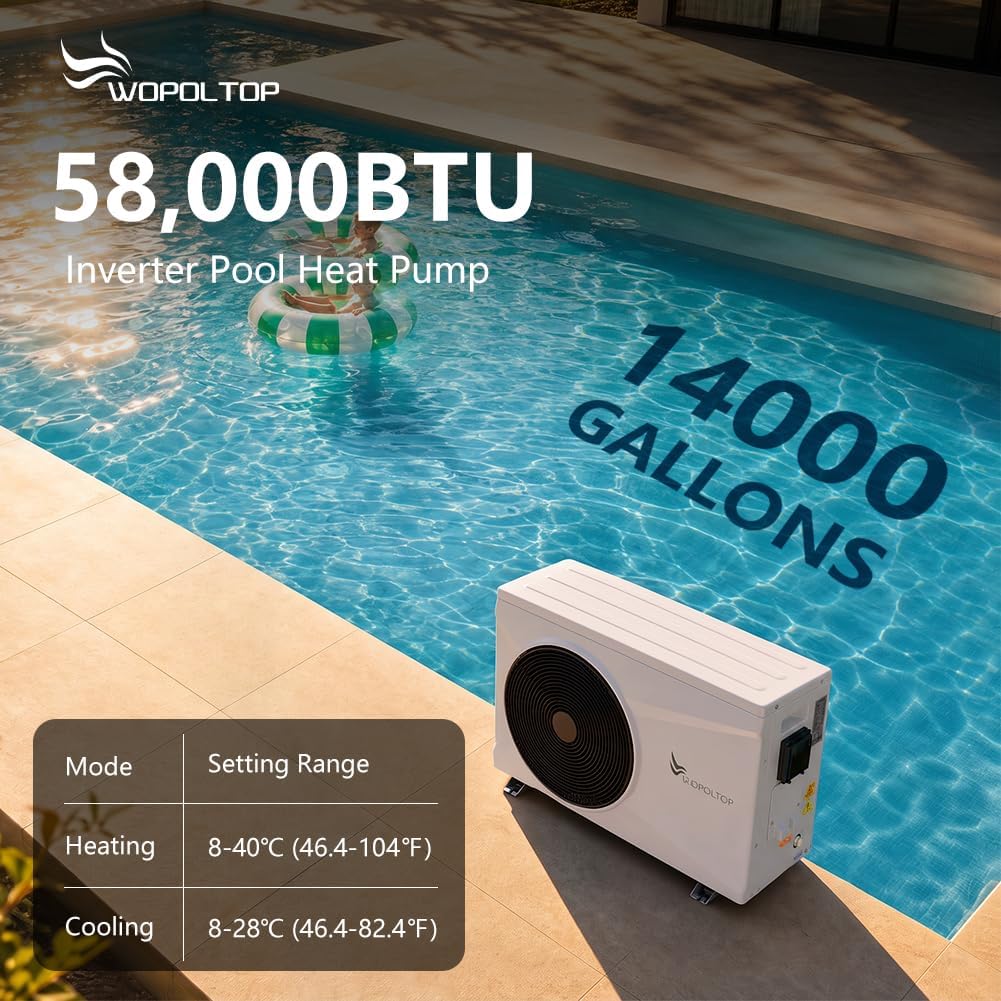

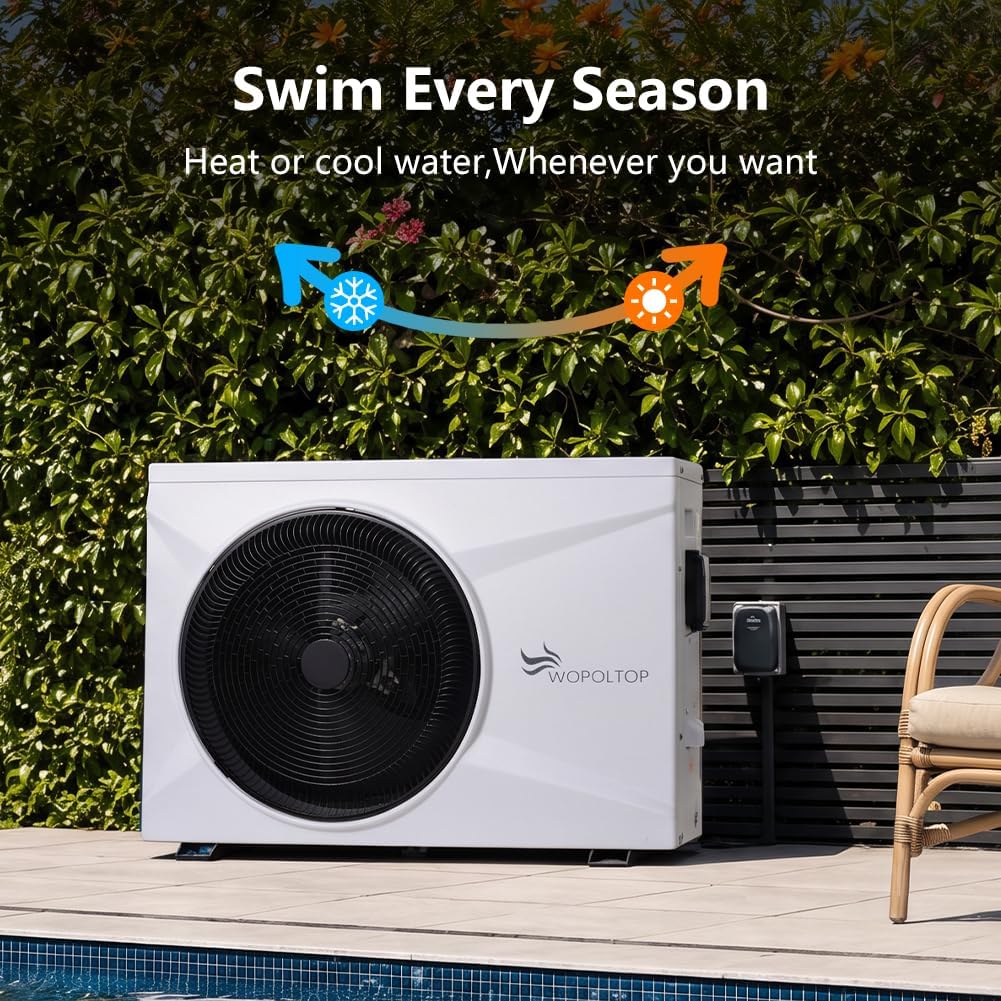

- Heating and cooling in one unit. Select the mode and target temperature from the controller. Manufacturer-listed heating settings are approximately 47–104°F; cooling settings are approximately 47–82°F.

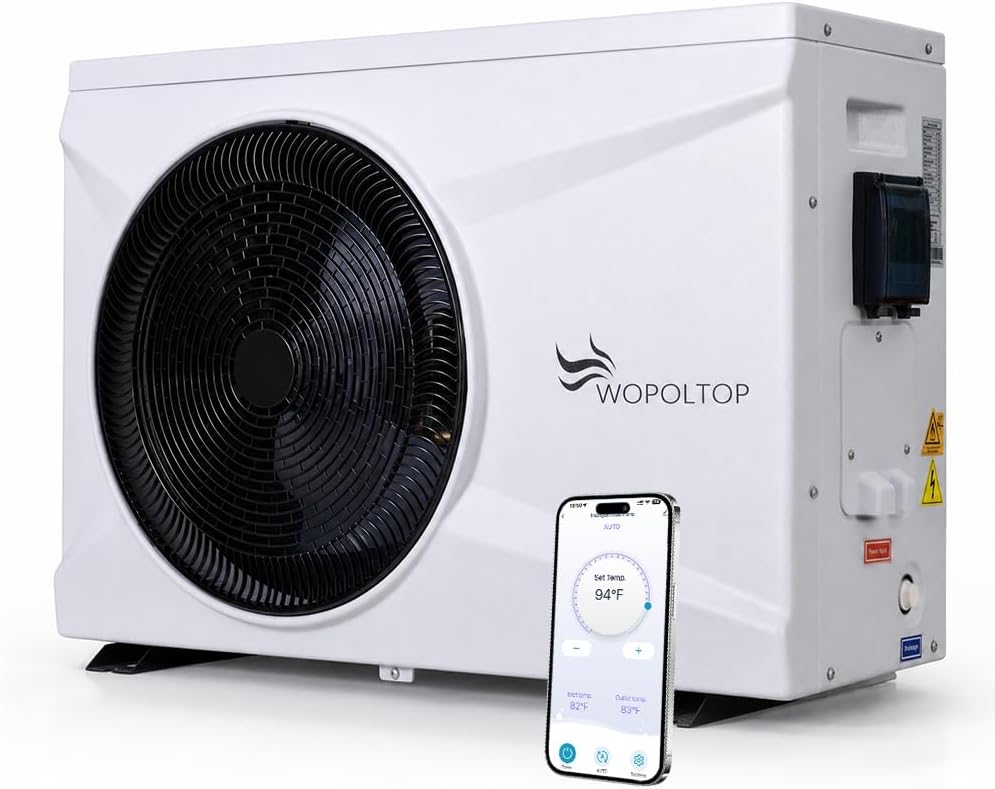

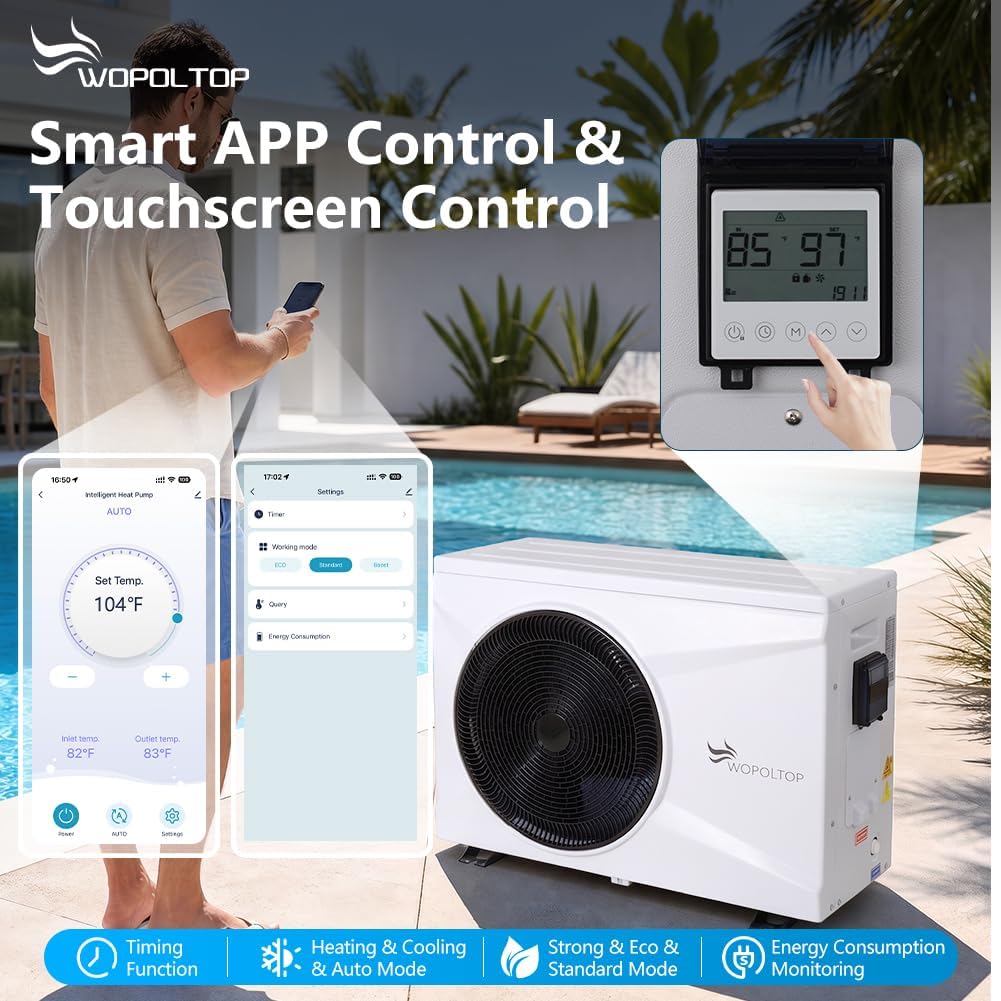

- WiFi app and onboard control. Adjust temperature, switch operating modes, set on/off schedules and view operating information from the app or onboard touchscreen. A compatible 2.4GHz WiFi network is required for app connectivity.

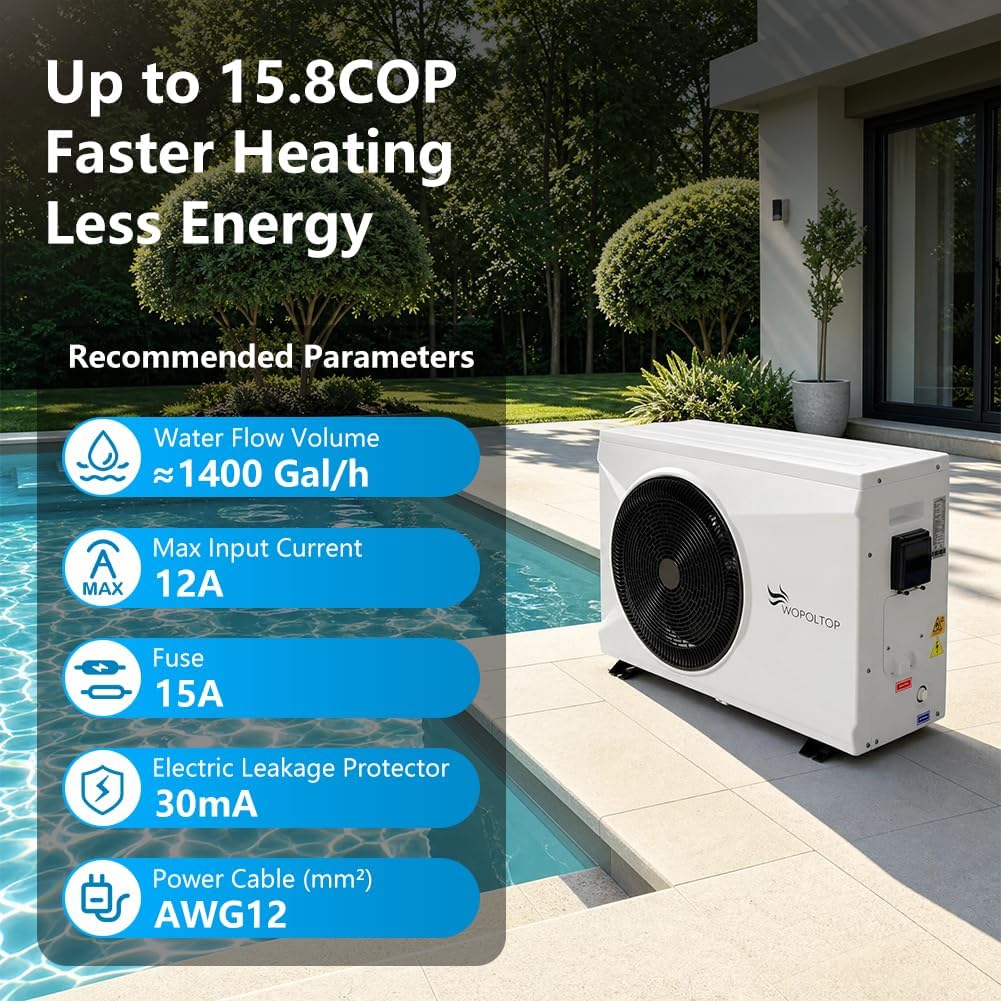

- Air-source efficiency. Transfers heat from ambient air into the pool water. Maximum manufacturer-listed COP is up to 15.8; actual efficiency and heating output vary with air temperature, humidity, water temperature and operating load.

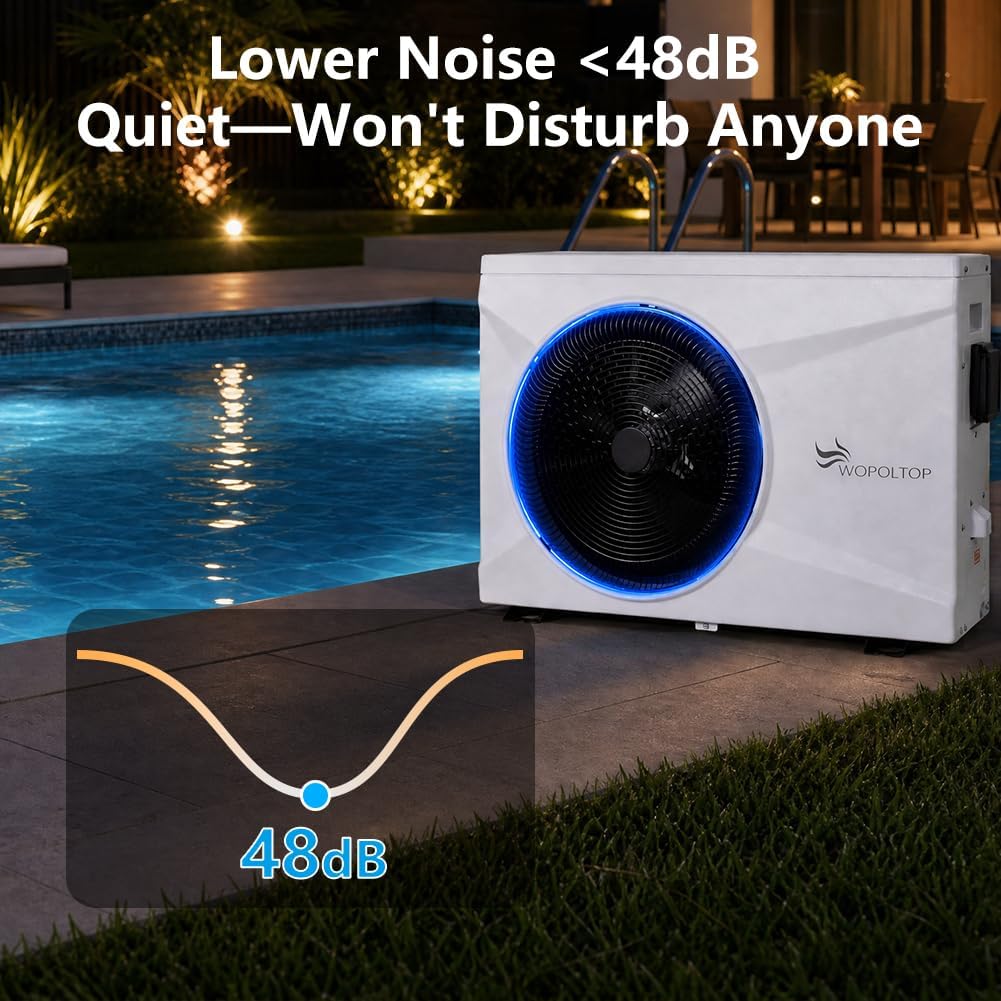

- Considered outdoor construction. Titanium heat exchanger, corrosion-resistant ABS housing and an IPX4 splash-resistance rating. The manufacturer lists 48 dB at approximately 1 metre; actual sound varies with operation and installation.

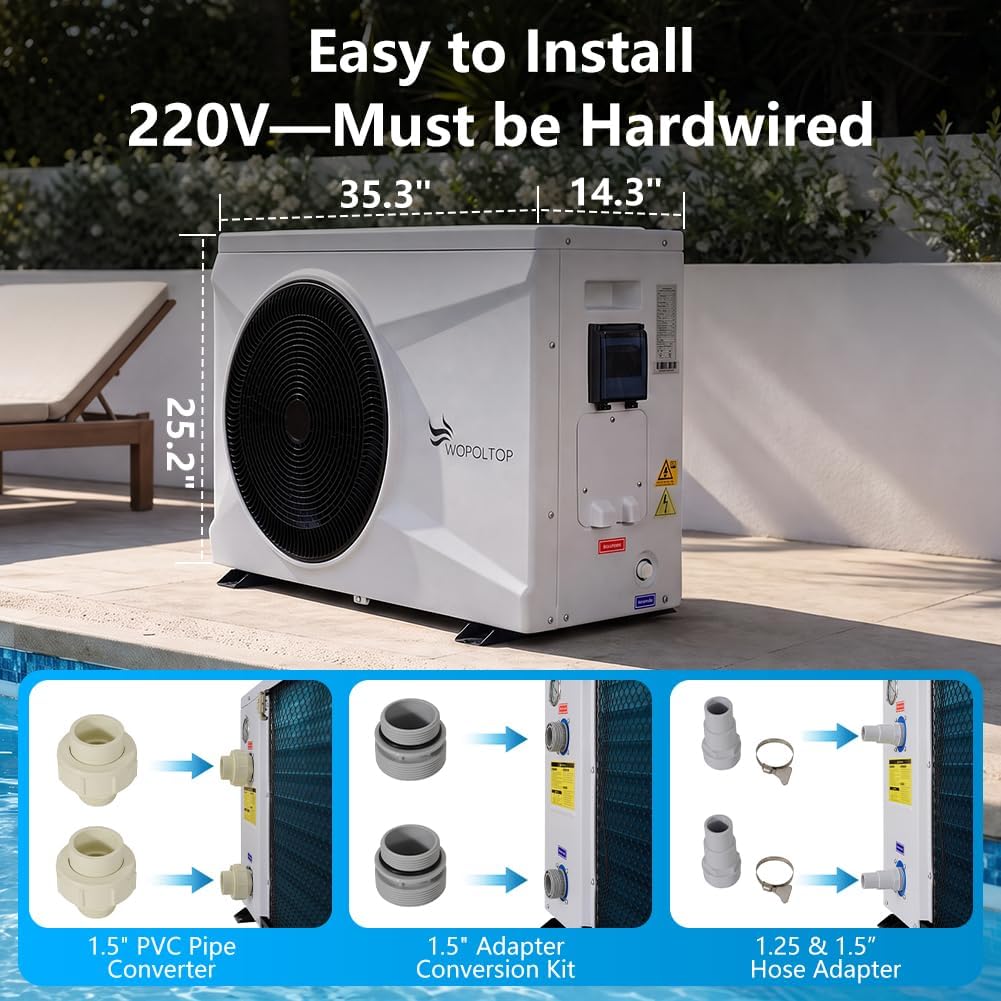

- Flexible water connections. Includes 1.25/1.5-inch hose adapters, 1.5-inch adapter conversion kits and 1.5-inch PVC pipe converters. Confirm the appropriate connection type and circulation requirements before installation.
Technical specifications
| Brand | WOPOLTOP |
|---|---|
| Heating output | Up to 58,000 BTU/h / 17kW class |
| Recommended pool capacity | Up to 14,000 US gallons; verify sizing for your conditions |
| Operating modes | Heating and cooling |
| Power supply | 220–240V |
| Electrical connection | Hardwired connection; qualified electrical installation required |

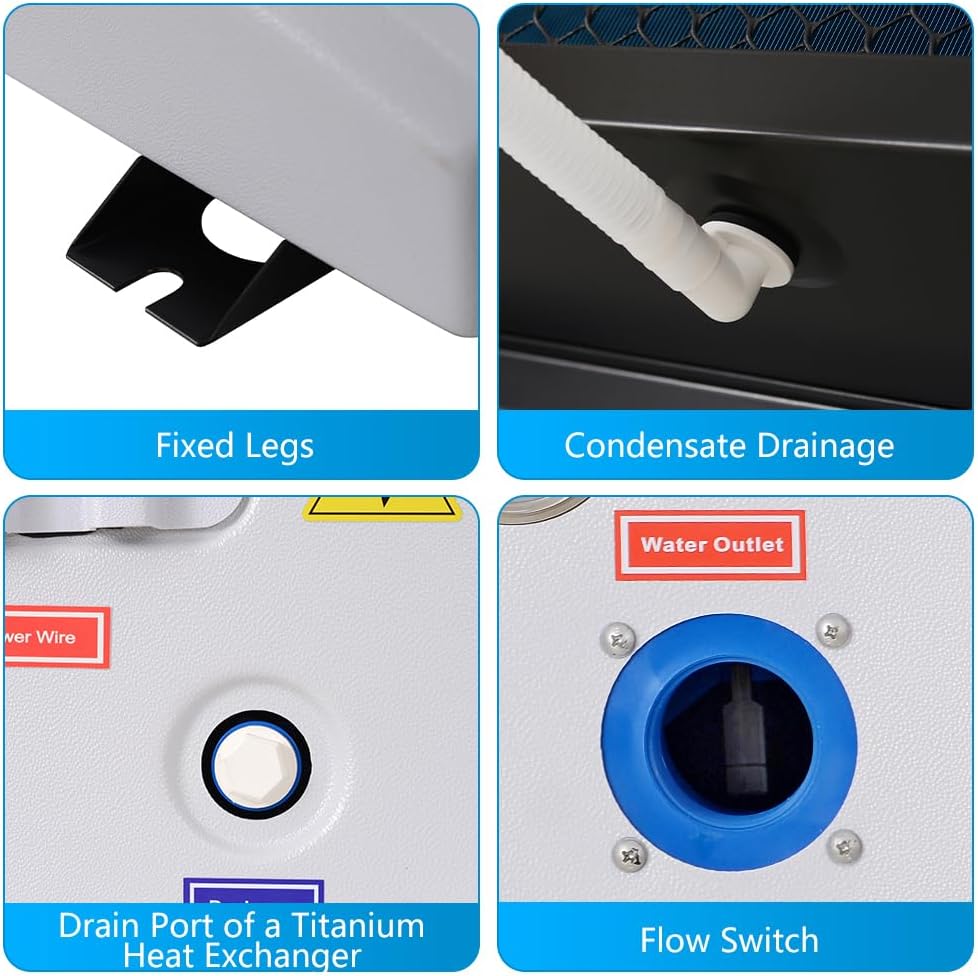

| Heat exchanger | Titanium |
| Compressor / fan | Full DC inverter |
| Controls | Onboard touch panel and WiFi app |
| WiFi network | 2.4GHz |
| Maximum COP | Up to 15.8; dependent on test and operating conditions |
| Heating settings | Approximately 47–104°F |
| Cooling settings | Approximately 47–82°F |
| Housing / outdoor rating | ABS / IPX4 |
| Listed sound level | 48 dB at approximately 1m; operating conditions apply |
Heating capacity is output, not electrical power consumption. Pool-volume recommendations, temperature ranges, COP and sound figures are manufacturer-listed values and depend on test / operating conditions. Refer to the supplied manual and rating label for the actual unit.
Product features & installation details
What’s included
- Pool heat pump
- Two 1.25/1.5-inch hose adapters
- Two 1.5-inch adapter conversion kits
- Two 1.5-inch PVC pipe converters
- Anti-vibration mounting pads and supplied installation accessories
- Operating / installation instructions
Pool circulation equipment, site plumbing and any required electrical installation must be suitable for your pool and are not implied to be included.
Installation & seasonal care
- Confirm pool volume, local climate, target temperature and use of a pool cover before selecting capacity. A pool cover helps reduce overnight and evaporative heat loss.
- Install on a stable base with unobstructed air intake / discharge and the clearances shown in the supplied instructions. The pool circulation pump must provide the required flow.
- Use a qualified installer for electrical connections, grounding and circuit protection. This is a hardwired 220–240V unit; it is not a standard 110V plug-in heater.
- Follow the manual after transport before first start-up. In freezing weather or extended storage, drain the water circuit as instructed; automatic protection does not replace winterization.
Before you order
Need help confirming the right capacity? Send your pool volume, installation country / region, available voltage and expected swimming-season temperatures through our Product Selection & Support form. Include the product name above so we can check this specific model.
Delivery & after-sales support
Local-warehouse delivery and free shipping. Eligible orders ship free to the contiguous 48 U.S. states and Washington, DC, and to Canada’s 10 provinces. Alaska, Hawaii, U.S. territories and island destinations, and Canada’s Northwest Territories, Nunavut and Yukon are currently excluded. U.S. orders ship from our U.S. warehouse; Canadian orders ship from our Canadian warehouse. Product availability depends on your selected country and local stock.
Processing and delivery estimates. Order processing normally takes 2–5 business days after order confirmation and payment. Estimated U.S. transit time is 3–7 business days after dispatch. Canadian delivery times vary by destination; contact us for an estimate before ordering. Processing and transit are separate periods. See our Shipping & Delivery Policy and Return & Refund Policy for the full terms.
For product selection or after-sales assistance, email servicepro@gbtops.com. For an existing purchase, include your order number, model and a description of the issue. Warranty coverage follows the supplied warranty card.
